Mobile Concrete Batching Plant

Mobile Concrete Mixing Plant

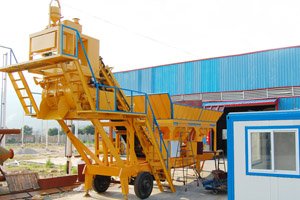

Mobile Concrete Mixing Plant Definition of Mobile Concrete Mixing Plant
Mobile Concrete Mixing Plant
is an optimization system engineering of concrete construction craft and new-design trailable mobile concrete mixing equipment.
At present, mobile concrete mixing plant can be divided into trail-type and pull-type mobile concrete mixing plants.

Mobile concrete mixing plant consists of material supply system, weighing system, mixing system, electric control system, etc.. Most functions of mobile concrete plant are finished in the pulling chassis. It combines aggregate, electronic weighing, mixing and lifting together.

Aggregate batching plant of mobile concrete mixing plant adopts cumulative metering, so the meterage is precise and reliable. Aggregate storage bins can meet 2-4 kinds of materials’ batching requirements. High-precision sensor, fall head automatic compensation function of aggregate batching plant and other functions ensure measuring accuracy of aggregates.

Concrete mixer of mobile concrete mixing plant is compulsory concrete mixer. So concrete mixer of mobile concrete mixing plant has strong mixing ability, even mixing effect and high productivity.

Features of Mobile Concrete Mixing Plant
Mobile concrete mixing plant is designed and developed especially for the users whose constructional project aim at shorting construction period, long construction line and frequent transition. The structure of mobile concrete mixing plant is compact, small floor area coverage, easy installation and high degree of automation. The movement function of mobile concrete plant is admirable. Quick assembly and disassembly, convenient movement.

Usages of Mobile Concrete Mixing Plant
Mobile concrete mixing plant is widely used in road and bridge construction, architecture, water conservancy and construction of long term highway project.

Mobile concrete mixing plant saves time and effort, which will improve production efficiency.

Pioneer Machinery Company is one of mobile concrete  plant suppliers, and our factory provide mobile concrete  plant for sale.

Parameters of Mobile Concrete Mixing Plant
Model HZSY25 HZSY35 HZSY50 HZSY75
Production(m3/h) 25 35 50 75
Mixer Type JS500 JS750 JS1000 JS1500
Power(kw) 1*18.5 1*30 2*18.5 2*30
Discharging(m3) 0.5 0.75 1 1.5
Aggregate size(mm) ≤60 ≤60 ≤60 ≤60
Batching system Capacity(m3) 4 4 6 7
Quantity 4 4 4 4
Weighing accuracy Aggregate(kg) 1000±2% 1500±2% 2000±2% 3000±2%
Cement(kg) 300±1% 500±1% 600±1% 800±1%
Water(kg) 200±1% 300±1% 300±1% 400±1%
Additive(kg) 20±1% 20±1% 20±1% 20±1%
