Belt Type Concrete Batching Plant

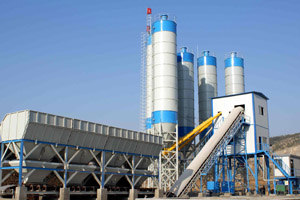

Belt Type Concrete Batching Plant

Definition of Belt Type Concrete Batching Plant
Belt type concrete batching plant
is continuous forced concrete batching station, which is comprised of six major systems. Six major systems include: mixing system, weighing and control system, cement system, aggregate feeding system, aggregate batching system, control system.


Details about six major systems:
1. Mixing system of belt type cement batching plant: the mixer of concrete batching plant uses JS series horizontal double shaft concrete mixer for high quality of mixing, short mixing time and long service life.
2. Weighing and control system of concrete batching plant: it adopts new-deign electrical weighing system and is equipped with buffered device and auto-add function to make sure the accuracy and timeliness of measurement.
3. Cement system of cement batching plant: it used for plated cement silo and screw conveyor, which is easy to install and has well seal performance and long service life. The cement is transited from cement silo to mixer through screw conveyor.
4. Aggregate feeding system of belt conveyor concrete batching plant: the aggregate is delivered to mixer by belt conveyor, which ensures continuous aggregate feeding. The system has ladder for worker to take maintenance.
5. Aggregate batching system of belt type cement batching plant: it uses separate storage bins and weighing hoppers to make sure accurate feeding and production.
6. Control system of belt type cement batching plant: it uses computer to control production both automatically and manually. So it is easy to operate.

From the start to the end of production: batching, mixing, propulsion and discharging is continuous.

Advantages of Belt Type Concrete Batching Plant
1. The mixer has stable work performance: raw material goes into mixer evenly in a relatively long time.
2. Concrete can be loaded in the car smoothly and evenly
3. Belt type cement batching plant has small space occupation.
4. The mixing can mix efficiently, so that the wear parts are protected and has long service time.
5. Raw material can be loaded in to the mixer evenly, so  the machine mixing is smoothly that it can save more energy consymption.

The most obvious advantage of belt type concrete batching plant is that belt type concrete batching plant adopts belt conveyor to calculate, transmit and throw powder materials. The whole concrete production process is carried out in closed environment, so belt type concrete batching plant is environmental friendly concrete machinery.

Safe operating notes of belt type concrete batching plant:

1. There should have specially-assigned person to operate the electric control system of concrete batching plant.

2.  All lines of concrete batching plant need be appropriately arranged in order to avoid accidents happening at work.

3.  After belt type concrete batching plant being used for a period of time, fasteners should be reexamined and fixed.

 4. Usually check the reliability of control switches, buttons, indicator lights, limits of lifting hopper, limits of door of balances and limits of door of concrete mixer.

5. When carrying out examination and repairment, concrete mixer users need turn off general power switch.

6. Lightning rod need to be installed before connecting electric


Here is belt type concrete batching plant in China. Pioneer Machinery Company provides various belt type cement batching plant. Customers can be at ease about belt type concrete batching plant price.

Parameters of Belt Type Concrete Batching Plant

Type Productivity(m3/h) Type of mixer Volume of mixer(m3) Batching machine Batching accuracy(%) Discharging height(m)
Aggregate Water Cement Additive
HZS60 60 JS1000 1 PLD2400 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS90 90 JS1500 1.5 PLD2400 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS120 120 JS2000 2 PLD3200 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS150 150 JS3000 3 PLD4800 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS180 180 JS3500 3.5 PLD4800 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
