PE6-15 Normal Brick Machine

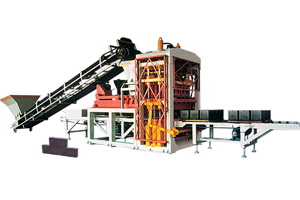

PE6-15 Normal Brick Machine PE6-15 normal brick machine is designed and manufactured by introducing foreign advanced technology according to the situation of our country. This small brick machine has the advantages of compact structure, aesthetic appearance, high durability, low maintenance rate, advanced automatic degree, good universality, stable and reliable performance.

PE6-15 normal brick machine is composed of automatic weighing system, twin shaft compulsory concrete mixer, PLC, touch screen control unit and other parts.

Only by changing the mould, this small brick making machine can make all kinds bricks, like various shapes of hollow bricks, colorized road brick, lawn brick, colorized standard brick, isolation layer and other products. Bricks produced by this small brick making machine have precise sizes and standard geometry.

PE6-15 adopts integration of mechanism, electricity and hydraulic, mechanical rotation, fluid power drive, full computer control, optimized vibration mode and advanced feeding system, which makes the degree of density of brick stronger and better. At present, this small brick machine is the most competitive and advanced equipment in China among municipal works cement products machinery.
Collocation of PE6-15 normal brick machine:

50T cement silo, screw conveyor (φ219×6m), cement weighing scale, pneumatic system, batcher (3×3m3), JS500 concrete mixer, host machine, mould, belt conveyor, hydraulic station, PLC control system, pallets feeder, blocks conveyor, blocks conveyor, manual hydraulic forklift, wearing spare parts.

Specifications and parameters:
Item Specification(L*W*H) Quantity per hour(PCS)
Hollow block 390*190*190 970-1080
Solid block 240*115*53 5800-6480
Porous block 240*115*90 2400-2700

Host machine dimension(mm) 3250*2250*2850 Host machine power 33.9kw
Moulding area(mm) 820*700 Vibration force 50-60kn
Moulding period 15-22s Factory area 600m2
Pallet size(mm) 940*830*25 Capacity 50kva
Host machine weight 8.5T Mixer model JS500
