PE3-25 Concrete Block Making Machine

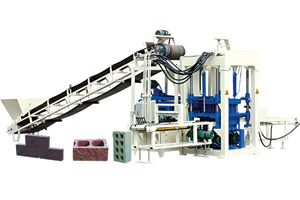

PE3-25 Concrete Block Making Machine PE3-25 concrete block making machine belongs to small type concrete block making machine. There are automatic type and manual type of PE3-25 concrete block making machines.
PE3-25 concrete block making machine is controlled by PLC.

PE3-25 concrete block making lines machine is featured by optimized design, reasonable structure, forced type material layout. Concrete block is able to be quickly mae by vibration and pressure. PE3-25 concrete block making lines macdhine is one set of efficient and economical concrete block making machine. PE3-25 concrete block making machine is practical.
Collocation of PE3-25 normal brick machine:

JS350 concrete mixer, PE3-25 block making machine, mould, belt conveyor, hydraulic station, PLC control system, pallets feeder, blocks conveyor, automatic stacker, manual hydraulic forklift, wearing spare parts, auto. color feeding system, ZSJ150 pigment mixer, extra normal mould, extra interlock mould, bamboo pallets (680×530×20mm).

Properly operating PE3-25 concrete block making machine would prolong the service life of the concrete block making machine.

Each part of concrete block making machine has its own rated power and rated voltage. Do not let concrete block making machine overwork, otherwise parts of concrete block making machine would be damaged and the service life would be shortened.

Specifications and parameters:
Dimension of the host machine 2600*1200*2590mm Specifications of the electrical machinery 18.3KW
Moulding area 400*600mm Vibration force 30KN
Moulding period 22-25s Rated pressure of the machine 16Mpa
The size of the splint 680*530*20mm
Weight of the host machine 3T

Item Specification(mm) (L*W*H) Quantity per hour(PCS)
Hollow block 390*190*190 380-432
Solid block 240*115*53 2500-2880
Porous block 240*115*90 960-1152
Zhengzhou Pioneer Machinery Co., Ltd is one of concrete block making machine manufacturers in China. All kinds of moulds can be produced by us according to buyers’ requirements.
