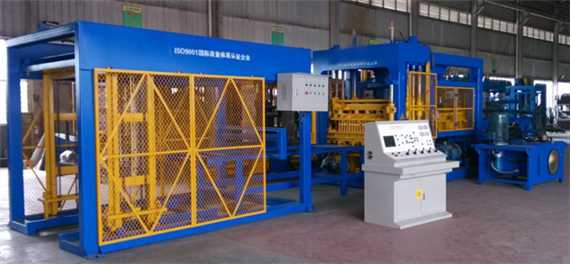

PE12-18 Full Automatic Concrete Block Making Machine

PE12-18 Full Automatic Concrete Block Making Machine According to varied requirements, full automatic concrete block making machine is designed and developed.

PE12-18 full automatic concrete block making machine is one multifunctional block machine. PE12-18 concrete cement brick machine is used to produce high quality concrete bricks, like hollow brick, solid brick, porous brick, dutch brick and other bricks. PE12-18 full automatic concrete block making machine is featured by competitive price and lower maintenance.

The principle of vibration of PE12-18 concrete cement brick machine is:  PE12-18 concrete cement brick machine adopts two hydro-motors to drive four axes, which will let four axes produce inertia excited force to directly push molding box to vibrate.This will make sure the vibration force of each part of molding box keep the same and make the block making machine generate directional sinusoidal wave. PE12-18 concrete cement brick machine uses table vibration and pass vibration force on to molding box by pallet, which will reduce vibration loss, enhance vibration effect and improve the strength of block.
The material layout of material seeder adopts poking fork to rotate and collocate material, which will let material evenly arrive the molding box and quickly complete the procedure of material layout. The specifications and intensity of bricks will be basically unified.

PE12-18 full automatic concrete block making machine is equipped with human-computer interface system. The system has such functions as automatic fault diagnosis, remote monitor and control and production process monitor.

PE12-18 full automatic concrete block making machine has compact structure, good production stability and high productivity.

Full automatic concrete block making machine greatly reduce human labor, at the same time, it also improves benefits and profits for concrete block making machine.

Collocation of PE12-18 concrete cement brick machine:
100T cement silo, screw conveyor φ219×6m, cement weighing scale, pneumatic system, batcher (3×3m3), JS1000 concrete mixer, HQTY12-18 block making machine, mould, belt conveyor, hydraulic station, PLC control system, pallets feeder, blocks conveyor, automatic stacker, manual hydraulic forklift, wearing spare parts, auto. color feeding system, ZSJ150 pigment mixer, extra normal mould, extra interlock mould, bamboo pallets (1350×860×30mm), wraping machine system.

Specifications and parameters:
Item Specification(mm) (L*W*H) Quantity per hour(PCS)
Hollow block 390*190*190 1900-2100
Solid block 240*115*53 11500-12500
Porous block 240*115*90 5000-6300
Host machine dimension(mm) 4560*2670*3260 Host machine power 50.7kw
Moulding area(mm) 1280*960 Vibration force 90-100kn
Moulding period 18-25s Factory area 1000m2
Pallet size(mm) 1350*1060*30 Capacity 100kva
Host machine weight 15T Mixer model JS1000
