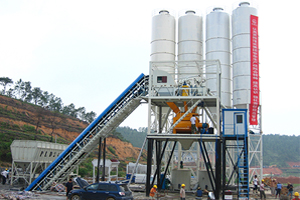

Belt Type Concrete Mixing Plant Definition of Belt Type Concrete Mixing Plant
Belt Type Concrete Mixing Plant
is one kind of construction equipment, which is used to produce concrete. Belt type cement mixing plant is made up of aggregate storing and weighing system, belt convey system, weighing system, concrete mixer, water supply system, additive supply system, control system, electric control system, etc..

The mixing machine of belt type concrete mixing plant adopts JS series double horizontal shaft forced mixer, thus ensuring excellent mixing performance and high efficiency. The mixing platform and weighing platform are separately installed, so it is convenient for clients to inspect and maintain. The cement system of cement mixing plant uses cement silo and  screw conveyor. The cement is easily transported from cement silo to mixer by using screw conveyor. Cement mixing plant uses electrical weighing system to make sure accurate and timely measurement. Aggregate batching plant of concrete mixing plant equipment adopts separate storage bins and weighing hoppers to insure production accuracy .

Features of Belt Type Concrete Mixing Plant
Concrete mixing plant equipment has a modular structure. The batching machine, belt conveyor, mixer, screw conveyor and cement silo are all separate units. It is easy to assemble and disassemble concrete mix machine. It is convenient to transport cement mixing plant. Concrete mix machine is suitable for different construction sites.

The followings are some advantages of belt type concrete mixing plant:

1. Concrete mixer of concrete mixing plant equipment works stably. Raw materials can evenly enter concrete mixer in a relatively long period of time to ensure the even mixing.

2. Concrete could stably go into the truck. Concrete is able to evenly enter the concrete truck in a relatively long period of time.

3. Concrete mix machine covers a smaller area.

4. Wear-resistant parts have lower wear. There will be no concussion to these wear-resistant parts to make sure the stable mixing of cement mixing plant.

5. Belt type concrete mixing plant has small energy-consumption.

6. Cost on application and maintenance is low.


Usages of Belt Type Concrete Mixing Plant
Belt type concrete mixing plant is the best choice for producing high quality concrete. Concrete mixing plant equipment is suitable for large and medium construction sites, water conservancy, large precast products and commercial concrete plants, etc..

Safely operate belt type concrete mixing plant:

Users need fasten and check each fastener after using concrete mixing plant for a period of time.

People are not allowed to stand in discharging area when belt type concrete mixing plant is working.

Do not examine and repair concrete batching plant and lubricate during operation.

Supply transformer are required to have enough capacity, otherwise it will damage electrical components and shorten the service life of concrete batching plant and also can not ensure stable operation.
Control room is the center of concrete batching plant and only operator and maintenance personnel are allowed to enter.

Parameters of Belt Type Concrete Mixing Plant
Type Productivity(m3/h) Type of mixer Volume of mixer(m3) Batching machine Batching accuracy(%) Discharging height(m)
Aggregate Water Cement Additive
HZS60 60 JS1000 1 PLD2400 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS90 90 JS1500 1.5 PLD2400 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS120 120 JS2000 2 PLD3200 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS150 150 JS3000 3 PLD4800 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
HZS180 180 JS3500 3.5 PLD4800 ≤± 2 ≤±1 ≤±1 ≤±1 3.8
